30.2 Server Setup Procedure

The supported server platforms and required software versions for the Web server are listed in Table 10.

Step 1: Install IIS

We recommend that IIS be the only Web server on the host and that the default port (80) be used. Check for other Web server software before proceeding to install IIS.

Note that if IIS version 2.0 or version 3.0 is installed, you must uninstall it before you install IIS version 4.0 from the Windows NT 4.0 Option Pack.

If you are using a Windows 2000 server and have taken all the defaults for the Windows 2000 server installation, IIS 5.0 and FrontPage 2000 Server Extensions are installed on your server. If you have not performed a default Windows 2000 server installation, use the Windows 2000 Control Panel to add the required components.

If you are using Windows NT 4.0 server, you need to install IIS 4.0 and either FrontPage Server Extensions or Office Server Extensions.

When installing IIS 4.0 from the Windows NT 4.0 Option Pack on Windows NT 4.0 or IIS 5.0 from the Windows 2000 Control Panel, the following components are required for the FrontPage/InterDev integrations. All other components are optional.

• Internet Information Server (when you select this component, you will also have to select a number of other components, like Windows NT Option Pack common files, on which this component depends)

• Internet Service Manager

• FrontPage Server Extensions (if you plan to install OSE later, installing FPSE at this time is optional)

• Windows Scripting Host

When you install IIS, a screen similar to Figure 37 appears. The default Web alias directory determines the VOB-tag of the Web content VOB that will be created in Step 4. (See Step 4: Run the Web Authoring Integration Configuration Wizard.) You need to choose the VOB-tag you want this Web server to access. By default, this is \wwwroot as shown in Figure 36. If this VOB-tag is already registered in this machine's ClearCase registry or if you want another name (for example, wwwroot_<host>, or a descriptive name, \sales_Webs) you must change the default now. The remainder of this pathname becomes a snapshot view root when the Web Authoring Integration Configuration Wizard is run, as shown in Figure 37.

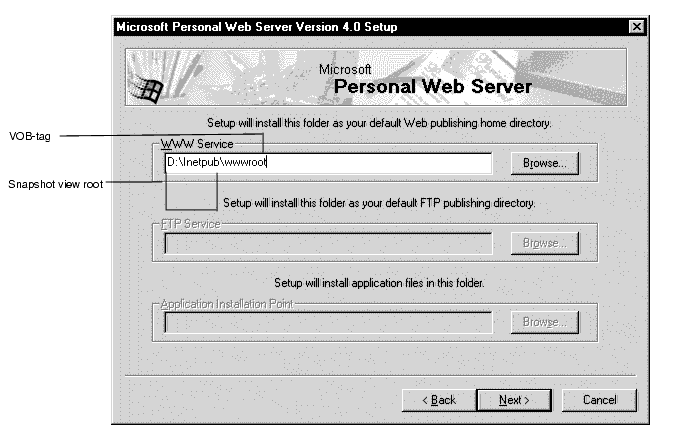

Figure 37 Setting Up the Root Web in the IIS Installation

After IIS is installed, you may need to run Internet Service Manager to add IIS operators and enable Basic Authentication. If you use a local VOB and view on the Web server that you are setting up, you do not need to enable Basic Authentication.

If Office 2000 was installed on the Windows NT 4.0 server before IIS 4.0 was installed, the FPSE will not be installed on the Web server even though you chose to install FPSE from the Windows NT 4.0 Option Pack. In this case, we recommend that you install OSE after the Windows NT 4.0 Option Pack to upgrade to version 4.0 server extensions.

Step 2: Install FPSE or OSE

If FPSE were installed in Step 1: Install IIS, it is not necessary to reinstall. If version 3 FPSE were installed by a previous Option Pack install, you can upgrade to OSE, but it is not necessary.

If FPSE were not installed in Step 1: Install IIS, install FPSE version 3.0 (from NT Option Pack) or version 4.0 (from Office 2000 CD3, Office Server Extensions (OSE), or Windows 2000). The FPSE are installed when you install Windows NT 4.0 Option Pack on Windows NT 4.0 Server and Windows 2000 Server.

Step 3: Install ClearCase

Install ClearCase with the following installation configuration:

• Local servers only (view_server, VOB_server, and albd_server)

• No MVFS

The Web Authoring Integration Configuration Wizard installed with ClearCase requires configured storage locations to create a VOB. We recommend that you create the default storage locations on the server as a part of ClearCase installation. The storage locations configured by the ClearCase installation are in the form \\<hostname>\ccstg_<disk>.

If you have selected the Server option for the ClearCase installation, SvrStor.exe runs on reboot after installing ClearCase to enable you to create storage locations. Alternatively, if you have selected the Client option for the ClearCase installation, you can create storage locations by running the SvrStor.exe, located in ccase-home-dir\etc. You can also use cleartool mkstgloc command with the-viewor-vob options.

Step 4: Run the Web Authoring Integration Configuration Wizard

Run the Web Authoring Integration Configuration Wizard and follow the instructions. To start the wizard, click Start > Programs > Rational ClearCase Administration > Integrations > Web Authoring Integration Configuration.

Online help is available for each wizard screen. When running the wizard, always specify Server Mode Configuration. Specify Local Mode Configuration only if you plan to install FrontPage 2000 client on the Web server.

If you have previously installed SourceSafe on your Web server, the wizard displays a Replace SourceSafe screen. To use the integration, you must click Yes. Doing so does not disable any part of SourceSafe except for the SourceSafe COM API.

After the Web Authoring Integration Configuration Wizard checks the versions of IIS and server extensions on the Web server, you are prompted to create a content area VOB. You can accept the default VOB storage location, as in Figure 38, or use the wizard to select another VOB storage location.

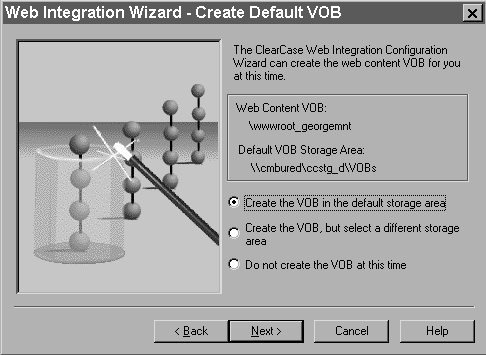

Figure 38 Setting Up the VOB Storage for the Integration

The wizard then prompts you to create a content area view, as in Figure 39.

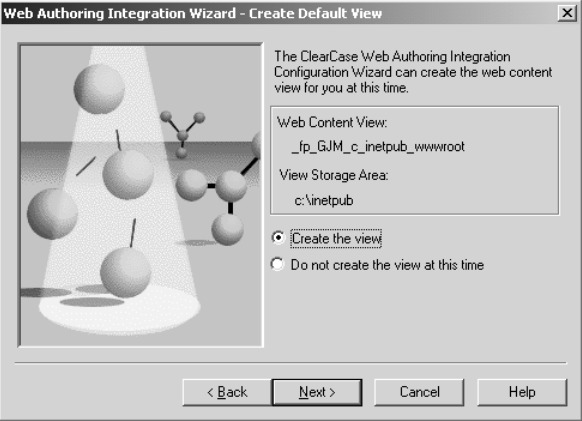

Figure 39 Setting Up the View Storage for the Integration

If you have not prepared storage locations for creation of the content VOB, you must create them and then rerun the wizard. We recommend that you put the VOB on the Web server, which improves performance and avoids the use of basic authentication.

If you decide to use an existing VOB (on UNIX or Windows NT) as the Web content VOB, it must be created and registered with the expected VOB-tag as described in Step 1: Install IIS. If this VOB is created before the wizard is run, the wizard shows the existing VOB-tag and skips the VOB creation step.

Any VOB accessed through the integration has the same trigger restrictions that ClearCase Web client access imposes, that is, interactive triggers fail.

The integration can only use views that are created either by the wizard or in FrontPage 2000 (with ClearCase > Create Snapshot View). The integration uses snapshot views that have a different hijacked-file detection mechanism than do standard snapshot views. This is necessary because FrontPage and InterDev rewrite files frequently. Attempts to use snapshot views created in any other way will fail. The integration does not support UCM-enabled snapshot views.

The Web Authoring Integration Configuration Wizard maintains a log file at ccase-home-dir\var\log\webintegration_log. You can review this log in the event of unexpected behavior or errors.
