State and Activity Specification--Actions Tab

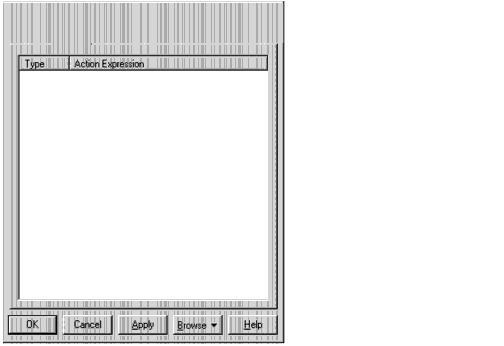

Figure 55 State and Activity Specification--Actions Tab

Information about the type and action expression is entered or displayed on this tab.

Type

The Type field identifier bar lists the kind of action specified in the Action Specification.

Action Expression

The Action Expression field identifier bar lists the four possible timing options that specify when to carry out an action, and it specifies the types of actions that are carried out. You can modify the action settings through the Action Specification Detail tab.

For information on the Action Specification, refer to the Action Specification on page 124.
