State and Activity Specification--General Tab

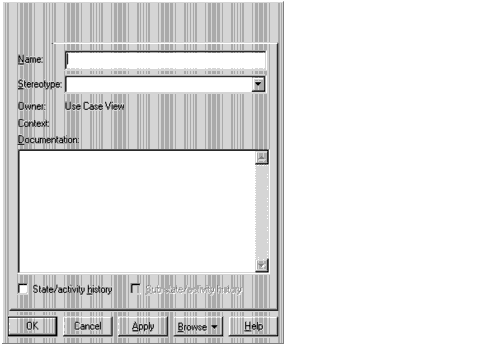

Figure 54 State and Activity Specification--General Tab

Refer to the descriptions in the Introduction to Specifications chapter for information on the specification elements not covered in the following section.

Information about the name, stereotype, owner, context, documentation, state/activity history, and sub state/activity history is entered or displayed on the tab.

State/Activity History

History provides a mechanism to return to the most recently visited state when transitioning directly to a state with substates. History applies to the level in which it appears. It may also be applied to the lowest depth of nested states.

To apply history at the state or activity level, click State/activity history. Click Sub state/activity history to apply history to all the depths of nested states or activities within the state or activity level.
