Selecting Icons

To select a single icon:

• Left-click the icon to be selected.

  Rational Rose displays the icon's selection handles and deselects all other icons.

To select multiple icons:

• Press and hold the control or shift key and click each icon to be selected.

  - or -

1 Point near the border of one of the icons to be selected.

2 Left-drag to create a dashed selection box around the icons you want to select.

3 Release the left mouse button.

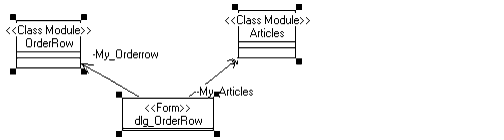

Rational Rose displays each icon's selection handles, and deselects all other icons. Figure 9 shows multiple elements selected in a diagram:

Figure 9 Selected Elements in a Diagram

Note: You can select any element in the diagram.
