Use-Case Diagram Toolbox

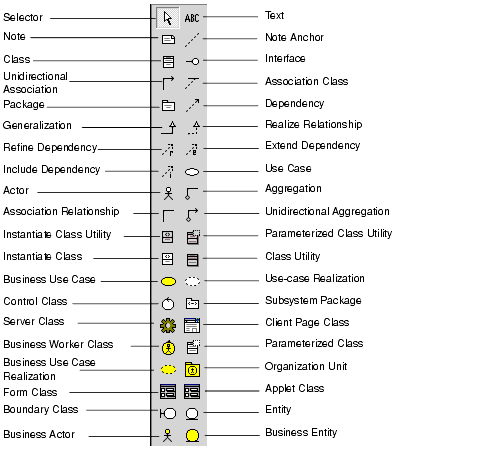

The graphic below shows all the tools that can be placed on the use-case diagram toolbox. Refer to "Customizing the Toolbox" on page 14 for information on adding or deleting diagram toolbox tools.

The application window displays the following toolbox when the current window contains a use-case diagram and As Unified is selected from the View menu.

Some icons will be different if As Booch or As OMT is selected from the View menu.

Figure 43 Use Case Diagram Toolbox

---

Use-Case Specification

A Use-Case Specification allows you to display and modify the properties and relationships of a use case in the current model.

Specification Content

The Use-Case Specification contains the following tabs: General, Diagram, Relations, and Files.
