Object Specification--Outgoing Object Flows Tab

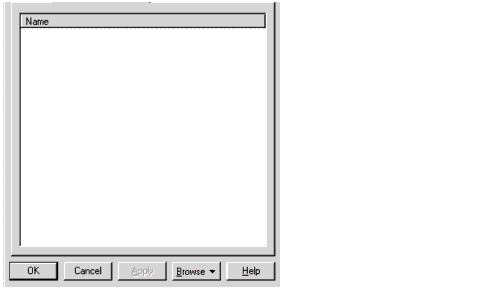

Figure 67 Object Specification--Outgoing Object Flows Tab

The Outgoing Object Flows tab displays the name of all outgoing object flows.

---

Object Flow Specification

An Object Flow Specification allows you to display and modify the properties and relationships of an object flow on an activity diagram.

The Object Flow Specification consists of the General tab.
