Device Specification--Detail Tab

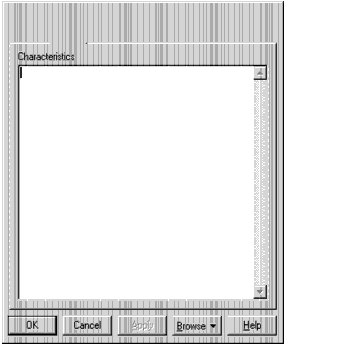

Figure 93 Device Specification--Detail Tab

Refer to the descriptions earlier in this chapter or in the Introduction to Specifications chapter for information on the specification elements.

---

Connection Specification

A Connection Specification indicates a communication path between two processors, two devices, or a processor and a device. A connection usually represents a direct hardware coupling, such as an RS-232 cable. It can also represent an indirect coupling.

To display a Connection Specification, double-click any icon representing a connection, or click Browse > Specifications.

The Connection Specification consists of two tabs, which contain the same elements as the Device Specification. Refer to Device Specification on page 173.

---

Process Specification

Processes are threads of control that execute on a processor. One process specification documents one thread of control.

You access the Process Specification through the Processes field of a Processor Specification. None of the information contained in the Process Specification is displayed in a diagram; thus, process properties can only be viewed and modified through a Process Specification.

Specification Content

The Process Specification consists of the General tab.
