Parameter Specification--General Tab

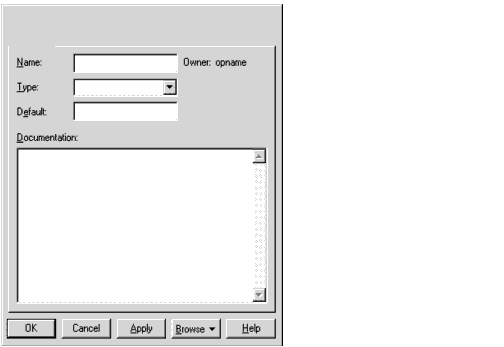

Figure 32 Parameter Specification--General Tab

Refer to the descriptions in the Introduction to Specifications chapter for information on the specification elements not covered in the following section.

Default

The default field may contain a value that an instance takes unless otherwise specified.

Owner

The operation is the owner of the parameter.

Type

Type is a description of a set of instances that share the same operations, abstract attributes and relationships, and semantics. Depending upon the language installed, different types will appear.

---

Association Specification

An association represents a bidirectional semantic relationship between two classes.

To display the association specification, double-click any icon representing the processor or click Browse > Specifications.

Specification Content

The Association Specification consists of the following tabs: General, Detail, Role A and Role B General, and Role A and Role B Detail.
