Class Specification--Relations Tab

Classes collaborate with other classes in a variety of ways. The Relations tab identifies the relationships in which this class is the client (class) and the corresponding supplier (end) class. If you labeled the relationship, Rational Rose displays its name after the kind of relationship.

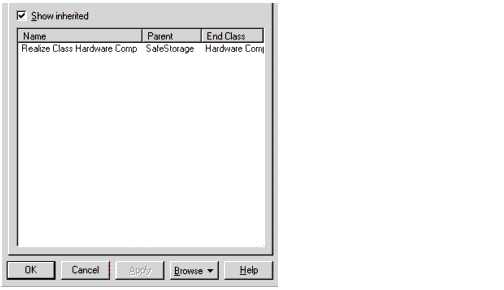

Figure 22 Class Specification--Relations Tab

.

Refer to the descriptions earlier in this chapter or in the Introduction to Specifications chapter for information on the specification elements not covered in the following section.

Rational Rose automatically updates this list when you draw relationships between classes.

The description for each field is discussed below:

• Name--displays the name of the relationship.
• Parent--displays the client name.
• End Class--displays the supplier name.
